Large-Format Medical Equipment Housings & Precision Enclosures
As a direct-source manufacturing partner equipped with a heavy-duty 50T to 1200T injection molding matrix, we deliver high-strength, flame-retardant (UL94-V0) polymer chassis, complex laboratory instrument covers, and load-bearing medical cart assemblies under an ISO 13485-aligned quality system.
Specializing in large-format structural foam and high-tonnage injection molding for clinical chemistry analyzers, hematology systems, and molecular diagnostics equipment. We ensure seamless multi-panel fit, integrated ribbing for vibration dampening, and superior chemical resistance against harsh hospital-grade disinfectants.
Clinical Chemistry & Hematology Analyzer Enclosures
Manufactured from high-impact medical-grade PC/ABS and modified PPE/PS polymers. Our tooling architecture supports complex side-actions, threaded brass insert overmolding, and tight seam gap control (<0.5 mm) for sophisticated modular instrument bodies.
- Structural Integrity: High load-bearing internal ribbing engineered to mitigate long-term creep and thermal warpage
- Chemical Resistance: Highly resistant to isopropyl alcohol (IPA), bleach, and standard hospital sterilants
- Safety Standards: Compliant with UL94-V0 / 5VA flame retardancy and ISO 13485 manufacturing protocols

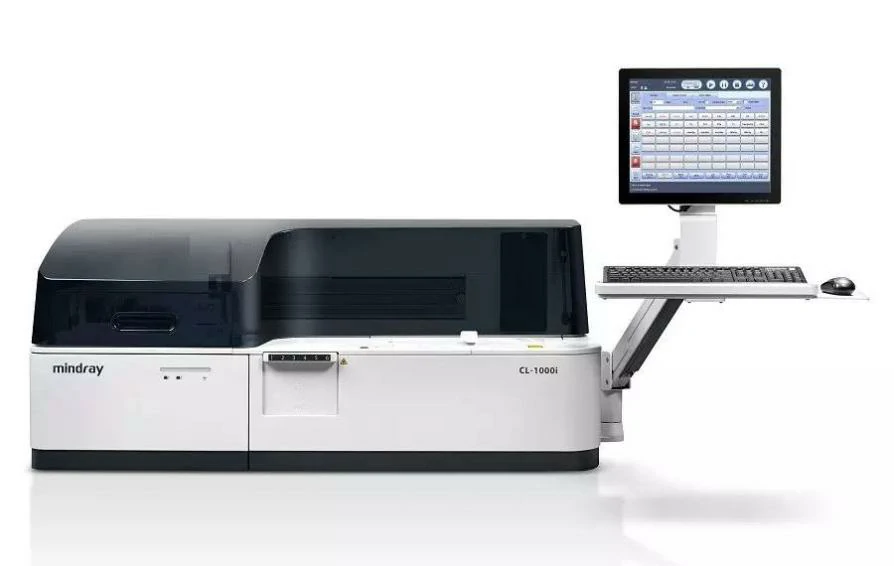

Modular Automation Line Casing
Extended track covers and protective side panels engineered specifically for high-throughput clinical laboratory automation systems.

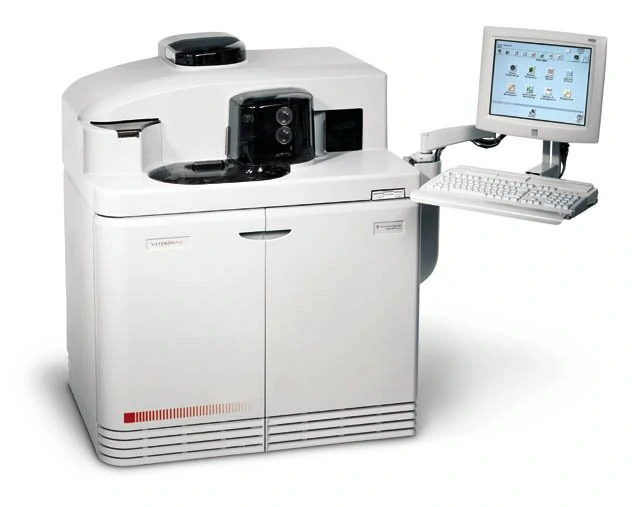

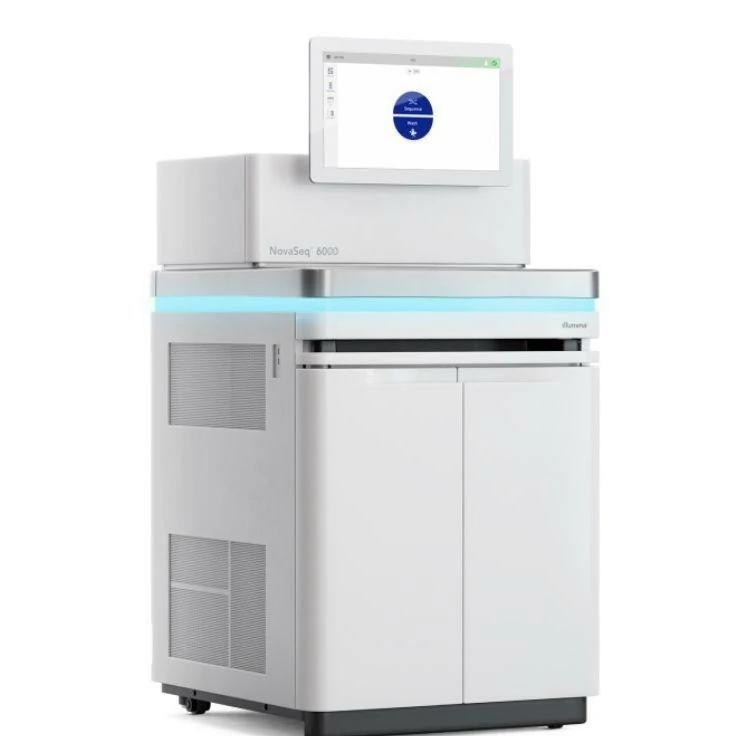

Floor-Standing System Workstations
Integrated lower cabinetry doors, structural service access panels, and ergonomic display arm mounting shrouds.

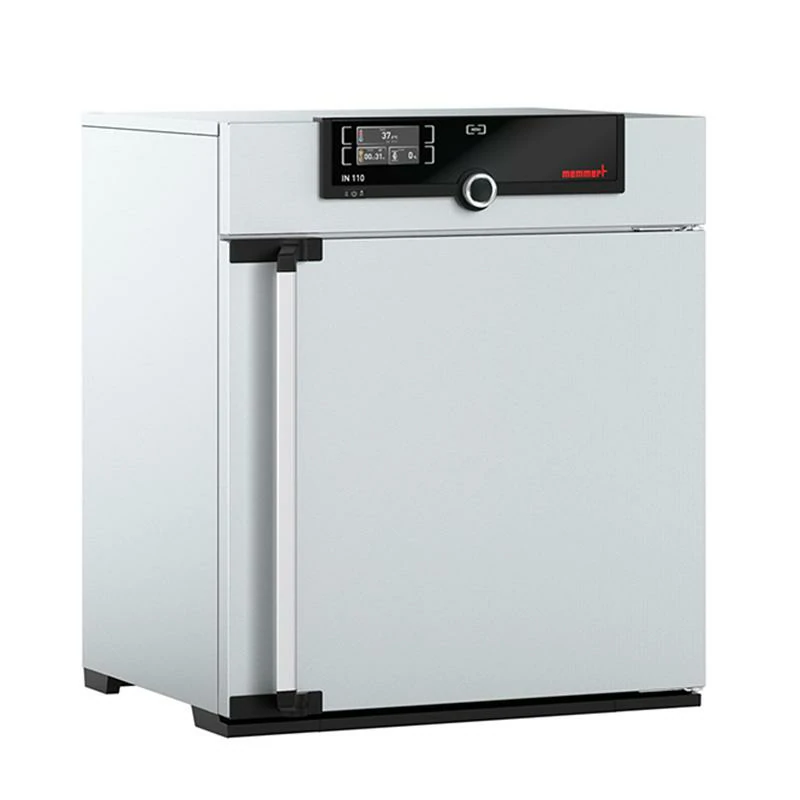

Delivering precision-molded protective lids, complex geometric structural housings, and thermal break insulation shells for benchtop laboratory centrifuges, incubators, and thermal cyclers.
Laboratory Centrifuge & Chamber Enclosures
Engineered to absorb rotational kinetic vibrations and maintain optimal thermal insulation. We seamlessly integrate metal-plastic hybrid overmolding, heavy-duty hinges, and precision gas-spring attachment points to ensure smooth, fatigue-resistant user operation.
- Surface Texture: Custom VDI 3400 standard mold texturing with anti-glare, scratch-resistant finishes
- Secondary Operations: Internal EMI/RFI conductive shielding coating and acoustic dampening foam assembly
- Dimensional Stability: Precision CMM verification ensuring reliable gasket sealing and chamber air tightness

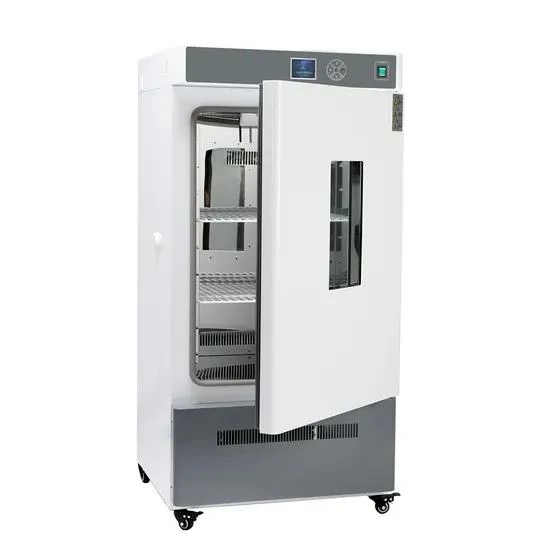

Chamber Doors & Dual-Sealing Frames
Double-gasket outer door bezels and thermal-break frames engineered for critical life science environmental stability chambers.

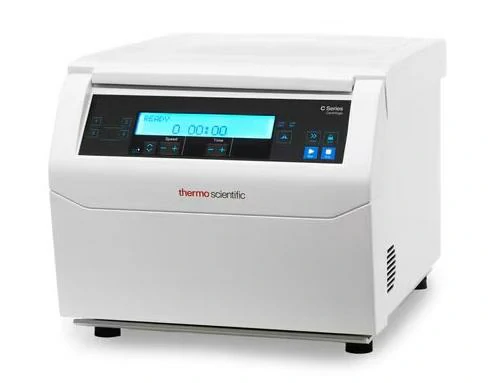

Benchtop Centrifuge Casings
Curved aerodynamic upper lids and robust outer shells featuring integrated emergency lid-lock release mechanisms.
Providing high-rigidity structural mobile workstations, modular drawer trays, and ergonomic touch-screen display bezels designed for superior mobility and demanding clinical environments.

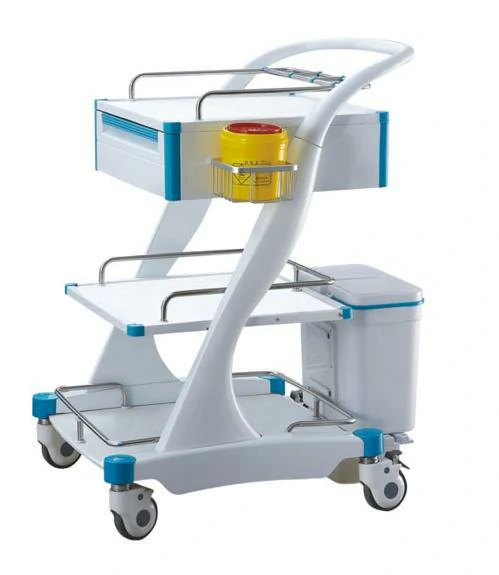

Mobile Medical Workstations & Tray Systems
Molded with thick-wall structural foam and reinforced PC/ABS polymers to deliver high rigidity, severe impact resistance, and lightweight maneuverability. The modular design supports customizable storage bins, power management compartments, and concealed cable channels.
- Weight Capacity: Base and tier shelves dynamically rated for heavy loads with minimal structural deflection
- Assembly Ready: Pre-installed ultrasonic threaded inserts and snap-locking interlocking joints
- Ergonomics: Integrated push-pull handles, smooth rounded corners, and easy-to-clean surface finishes

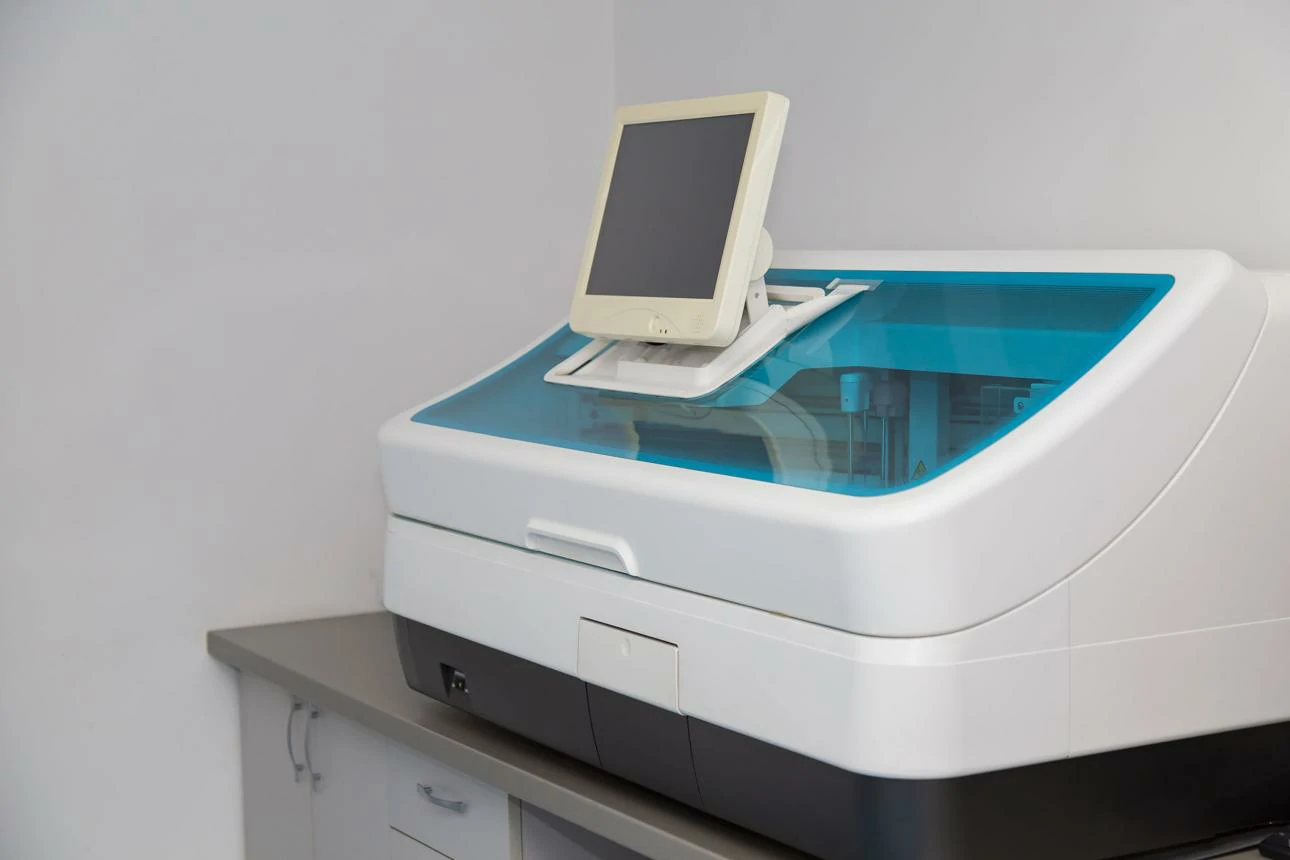

Point-of-Care (POC) Analyzer Casings
Compact benchtop instrument housings integrating interactive display bezels, sample loading doors, and secure internal mounting chassis.

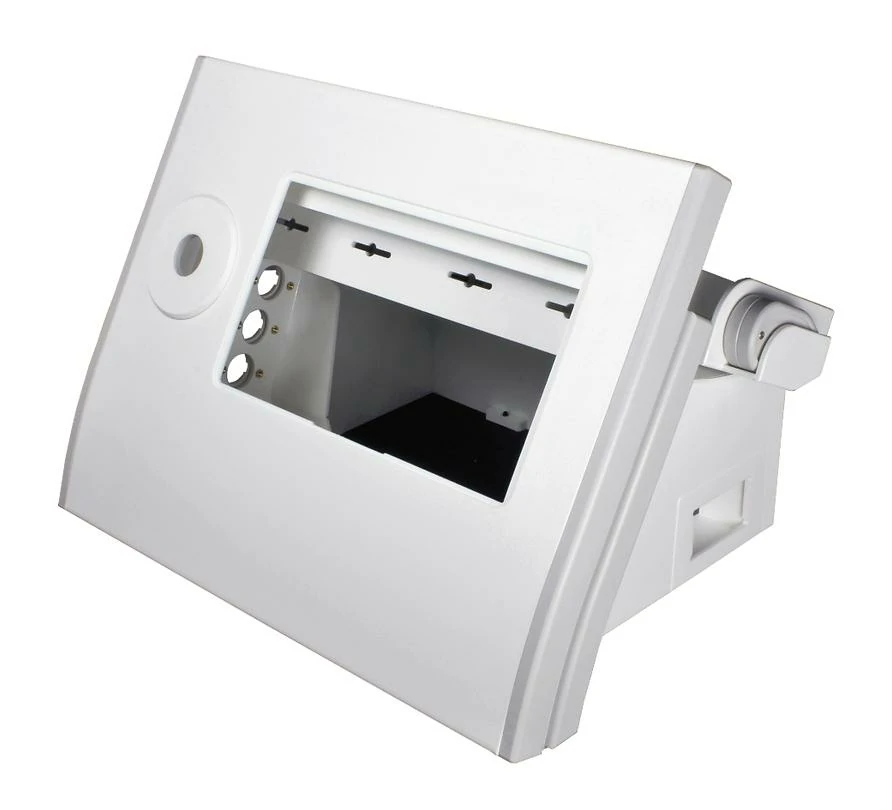

Display Bezels & Touch-Panel Frames
Tight-tolerance front bezels featuring IPX5-rated sealing grooves, optical bonding compatibility, and anti-glare masking.
Heavy-Duty Tooling & Enclosure Manufacturing Capabilities
| Engineering Parameter | Factory Machine Capacity & Specs | Standards & Surface Finishes |
|---|---|---|
| Injection Machine Matrix | 50T to 1200T High-Tonnage Presses with Robotic Arms | ISO 13485-Aligned Direct Manufacturing Facility |
| Structural Materials | Medical PC/ABS, PPE/PS, Flame-Retardant PC, ABS, PBT | UL94-V0, UL94-5VA Flame Retardant & RoHS Compliant |
| Surface Treatments | VDI 3400 Custom Texturing, Class A1 High-Gloss Polish | EMI / RFI Shielding Conductive Painting (Nickel/Copper) |
| Secondary Operations | Ultrasonic Welding, Hot Melt Brass Inserts, Sub-assembly | Zeiss Bridge CMM Dimensional Inspection, Color Spectrophotometry |
GLOBAL SUPPLY.
LOCAL PRECISION.
We bridge the gap between world-class engineering and global medical supply chains. Whether you are in North America, Europe, or Asia, our OEM components integrate seamlessly into your production lines.
30+
Countries Served
Strict
NDA Protocols
Cpk
Driven Quality
Request a Quote
Upload your CAD or specs. Our engineers will reply within 24 hours.
